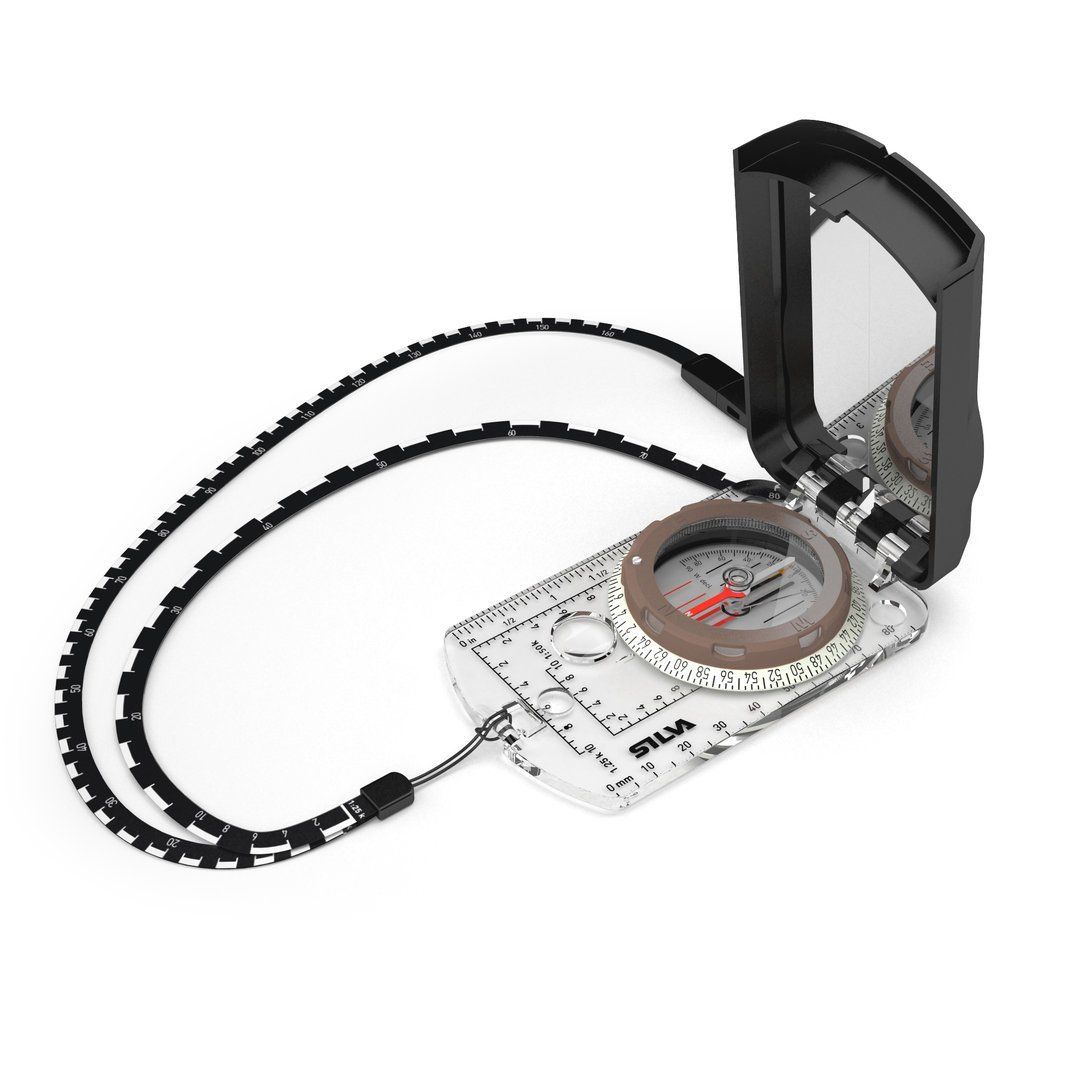

Silva 16DCL Compass

Mainly used by the infantry as a soldier’s or officer’s compass. Additional features include measuring scales for positioning (GPS), graduation in mils and degrees (640/360), integrated adjuster for magnetic declination, magnifying lens and rubber feet for precision map work. The compass had a luminous graduation ring and markings for compass reading in the dark. Once activated by daylight/flashlight it will give up to 4 hours of light. The included scale lanyard and slope card makes it easier to quickly make a distance judgment of your route or to plan your route in advance.

Specifications:
• Accuracy ~ +/- 17.8mils/1°
• Clinometer ~ Yes
• Declination adjustment ~ Yes
• Graduation ~ 6400/360°
• Illumination ~ luminous markings, graduation ring with 4 hour active time
• Included ~ Scale lanyard, slope card
• Magnifying lens ~ Yes
• Materials ~ Acrylic, PC/ABS, TPU/ Acetal
• Sapphire jewel bearing for friction-free movement of the compass needle ~ Yes
• Scales ~ 1:25k, 1:50k, GPS scales, Lanyard; 1:25, / 1:50, mm
• Sighting System ~ Yes
• Size ~ 64x108x20 mm
• Slope card ~ Yes
• Type of compass ~ Baseplate, Mirror Sighting
• Temperature operating range ~ -30 to +60 °C
• Patented red/black N/S lines in capsule ~ Yes
• Tunable capsule ~ Yes
• Weight ~ 86g
